Pentair Simer 3105P 1/2 HP Thermoplastic Shallow Well Jet Pump

Main Content Starts Here

Pentair Simer 3105P 1/2 HP Thermoplastic Shallow Well Jet Pump

This pump has superior performance to depths of water 25' or less.

Key Features

  • Corrosion-resistant thermoplastic construction
  • Superior performance

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

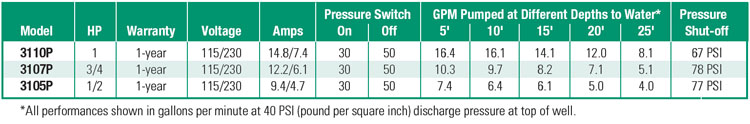

Performance Curves



Accessories

Specifications

Item #Horsepower
3105P-101/2
Item #Horsepower
3105P-101/2

BODY CONSTRUCTION:  Thermoplastic
MAXIMUM CAPACITY:  7.4 GPM
FLOW AT 10' LIFT AND 40 PSI:  6.4 GPM
MAX LIFT:  25'
MAX SHUT-OFF PRESSURE:  77 PSI
MAXIMUM INLET PRESSURE:  22 PSI
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1-1/4" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  9.9 amps on 115v / 4.95 amps on 230v
VOLTAGE:  115v/230V ac, 60 Hz (factory pre-set to 115v)
RECOMMENDED BREAKER:  15 Amp
MAXIMUM WATER TEMPERATURE:  140 °F / (60 °C)
