Pentair Simer 3107P 3/4 HP Thermoplastic Shallow Well Jet Pump

Main Content Starts Here

Pentair Simer 3107P 3/4 HP Thermoplastic Shallow Well Jet Pump

Shallow well jet pump pulls water from as deep as 25' for home water and light duty sprinkler systems

Key Features

  • Rugged thermoplastic design
  • High performance
  • Dual voltage versatility

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

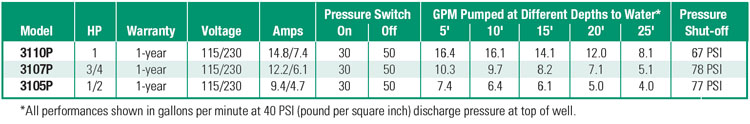

Performance Curves



Specifications

Item #Horsepower
3107P-103/4
Item #Horsepower
3107P-103/4
Show less

BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  3/4 HP
MAXIMUM CAPACITY:  10.3 GPM
FLOW AT 10' LIFT AND 40 PSI:  9.7 GPM
MAX LIFT:  25'
MAXIMUM SHUT-OFF PRESSURE:  78 PSI
MAXIMUM INLET PRESSURE:  22 PSI
PRESSURE SWITCH SETTINGS:  30-50 PSI
SUCTION SIZE:  1-1/4" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  6.1 amps on 230v / 12.2 amps on 115v
VOLTAGE:  230v/115v AC, 60 Hz (factory pre-set to 230v)
RECOMMENDED BREAKER:  15 am on 230v / 20 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)
