Pentair Simer 3110P 1 HP Thermoplastic Shallow Well Jet Pump

Main Content Starts Here

Pentair Simer 3110P 1 HP Thermoplastic Shallow Well Jet Pump

Shallow well jet pump pulls water from as deep as 25' for home water and light duty sprinkler systems

Key Features

  • High performance
  • Sturdy thermoplastic construction
  • Dual voltage motor

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

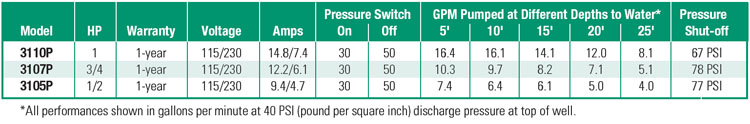

Performance Curves



Accessories

Specifications
Resources

BODY CONSTRUCTION:  Thermoplastic

HORSEPOWER:  1 HP

MAXIMUM CAPACITY:  16.4 GPM

FLOW AT 10' LIFT AND 40 PSI:  16.1 GPM

MAX LIFT:  25'

MAXIMUM SHUT-OFF PRESSURE:  67 PSI

MAXIMUM INLET PRESSURE:  22 PSI

PRESSURE SWITCH SETTINGS:  30 - 50 PSI

SUCTION SIZE:  1-1/4" NPT (female)

DISCHARGE SIZE:  1" NPT (female)

AMP DRAW (full load):  7.4 Amps on 230v / 14.8 Amps on 115v

VOLTAGE:  230v/115v AC, 60 Hz (factory preset to 230v)

RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v

MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)

Owner's Manual: 3105P, 3107P, 3110P, 4807S, 4810S
Download Manual

Parts Listing: 3105P, 3107P, 3110P
Download Parts

Specifications: 3105P, 3107P, 3110P
Download Specs

Instructions: Pressure Switch Adjustment
Download Instructions
