- Pentair Simer 4807S 3/4 HP Stainless Steel Shallow Well Jet Pump

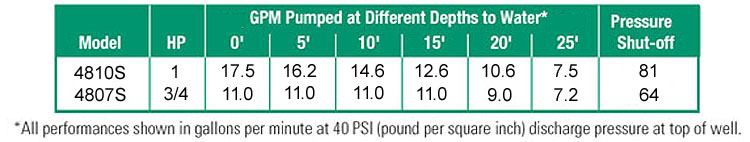

Performance Curves

Accessories
-
Pentair Parts2O TC2501LF-P2 1-1/4" Lead-Free Brass & Stainless Steel Foot Valve
-
Pentair Simer TC2505LF-P2 1-1/4" Brass Check Valve
-
Pentair Parts2O FP216-94-P2 6" Cast Iron Well Seal with Holes for 1-1/4" and 1" Drop Pipes
-
Pentair Simer J11-6-P2 1-1/4" Drive Coupling
-
Pentair Simer J208-2-P2 1-1/4" x 36" Well Drive Point
-
Pentair Simer J48-12-P2 48" Drive Well Point for 1-1/4" Pipe
Specifications
Resources
BODY CONSTRUCTION: Stainless Steel
HORSEPOWER: 3/4 HP
MAXIMUM CAPACITY: 11 GPM
FLOW at 10' LIFT AND 40 PSI: 11 GPM
MAX LIFT: 25'
MAX SHUT-OFF PRESSURE: 64 PSI
MAXIMUM INLET PRESSURE: 50 PSI
PRESSURE SWITCH SETTING: 30/50
SUCTION SIZE: 1-1/4" NPT
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load): 7.4 Amps on 230v / 14.8 Amps on 115v
VOLTAGE: 230v / 115v AC, 60 Hz
RECOMMENDED BREAKER: 15 Amp for 230v / 20 Amp for 115v
MAXIMUM WATER TEMPERATURE: 122 F (50 C)
Owner's Manual: 3105P, 3107P, 3110P, 4807S, 4810S
Download Manual
Parts Listing: 4807s, 4810s
Download Parts
