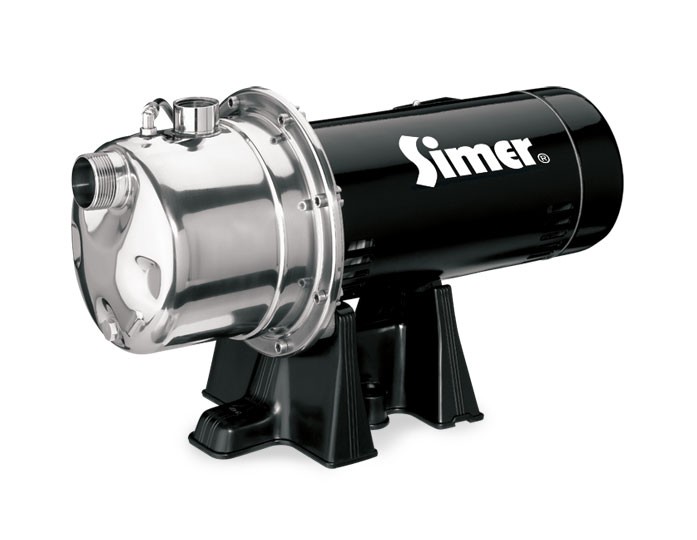

Pentair Simer 4810S 1 HP Stainless Steel Shallow Well Jet Pump

Main Content Starts Here

Pentair Simer 4810S 1 HP Stainless Steel Shallow Well Jet Pump

Stainless Steel - bodied shallow well jet pump prevents corrosion in harsh environments. High volume output for high-demand usage in homes and for small sprinkler systems.

Key Features

  • Superior Performance  At depths of water to 25’ or less
  • Rugged Stainless Steel Construction  For highest corrosion resistance
  • Heavy-Duty Dual-Voltage Motor  Pre-set at 230V (see manual for 115V conversion)
  • Pre-Wired Pressure Switch  Pre-set for 30/50 PSI operation
  • Self-Priming after Pump Housing is Initially Filled  Check valve or foot valve required, sold separately

Warranty

1-year Limited Warranty

Find out where to purchase online or in a retail location near you.

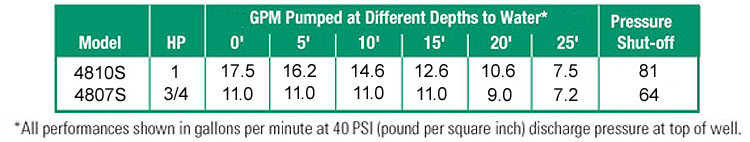

Performance Curves



Accessories

Specifications
Resources

BODY CONSTRUCTION:  Stainless Steel

HORSEPOWER:  1 HP

MAXIMUM CAPACITY:  16.2 GPM

FLOW at 10' LIFT AND 40 PSI:  14.6 GPM

MAX LIFT:  25'

MAX SHUT-OFF PRESSURE:  80 PSI

MAXIMUM INLET PRESSURE:  50 PSI

PRESSURE SWITCH SETTING:  30/50

SUCTION SIZE:  1-1/4" NPT

DISCHARGE SIZE:  1" NPT

AMP DRAW (full load):  9.6 Amps on 230v / 19.2 Amps on 115v

VOLTAGE:  230v / 115v AC, 60 Hz (factory pre-set to 230v)

RECOMMENDED BREAKER:  15 Amp on 230v / 25 Amp on 115v

MAXIMUM WATER TEMPERATURE:  122 F (50 C)

Owner's Manual: 3105P, 3107P, 3110P, 4807S, 4810S
Download Manual

Parts Listing: 4807s, 4810s
Download Parts
