Pentair Simer HT20 20 Gallon Horizontal Pre-Charged Bladder Tank

Main Content Starts Here

Pentair Simer HT20 20 Gallon Horizontal Pre-Charged Bladder Tank

Compact horizontal tank has a pump mounting bracket attached to the top.  Allows compact installation perfect for small areas.

KEY FEATURES

  • Tough, Appliance-Like Finish for Extended Life
  • Heavy Gauge Steel Construction for Maximum Durability
  • Replaceable Air/Water Separator for Easy Maintenance
  • Factory Pre-Charged at 40 PSI (see instruction manual for final pressure adjustment)
  • Convenient Air Valve Location for Quick Hook-Up
  • Universal Jet Pump Mounting Bracket Included
  • Certified to ANSI / NSF 61

WARRANTY

5-year limited warranty

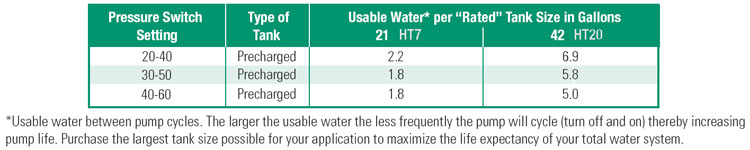

Performance Curves



Specifications

BODY CONSTRUCTION:  TANK: Steel / BLADDER: Vinyl
BODY FINISH:  Electrostatically Applied Baked-On Polyester
TANK PRECHARGE:  40 PSI
TANK CAPACITY:  20 Gal
EQUIVALENCY RATING:  42 Gal
DRAWDOWN w/ 20/40 SWITCH:  6.9 Gal
DRAWDOWN w/ 30/50 SWITCH:  5.8 Gal
DRAWDOWN w/ 40/60 SWITCH:  5.0 Gal
BLADDER / WATER CELL:  Vinyl
PIPE TAP SIZE:  1" NPT
MAXIMUM PRESSURE RATING:  100 PSI
