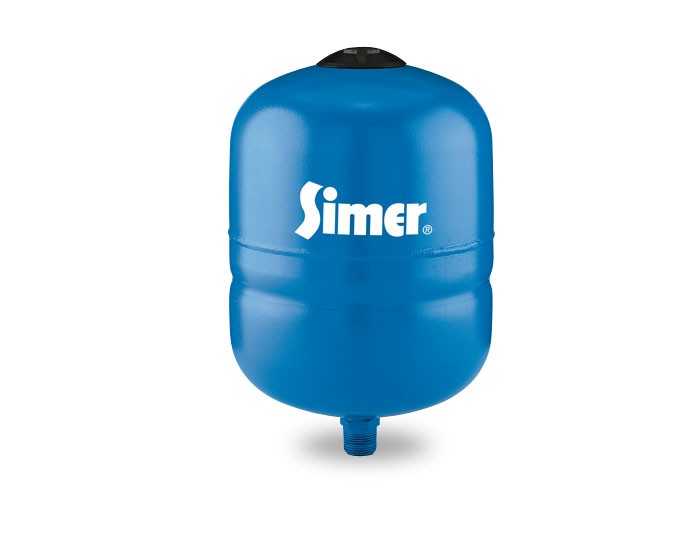

Pentair Simer LT2 2 Gallon Vertical Pre-Charged Pressure Tank

Main Content Starts Here

Pentair Simer LT2 2 Gallon Vertical Pre-Charged Pressure Tank

Compact pre-charged diaphragm-style pressure tank is great for a very small system or surge tank

KEY FEATURES

  • Heavy gauge steel shell
  • Vinyl bladder
  • Factory pre-charged to 40 psi so no compressor needed on-site

WARRANTY

5-year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves



Specifications

BODY CONSTRUCTION:  Heavy gauge steel
BODY FINISH:  Electrostatically Applied Baked On Polyester

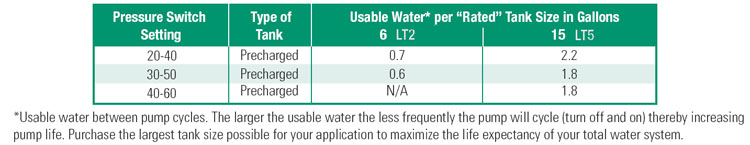

DRAWDOWN (Usable Water) with 20-40 SWITCH:  .7 Gal
DRAWDOWN (Usable Water) with 30-50 SWITCH:  .6 Gal
DRAWDOWN (Usable Water) with 40-60 SWITCH:  N/A
MAX CAPACITY:  5 Gal
RATED (EQUIVALENCY) CAPACITY:  15 Gal
MAX OPERATING PRESSURE:
CONNECTION SIZE:  3/4" NPT
WEIGHT:  6.4 lbs
HEIGHT:  12.6"
DIAMETER:  8"
MAXIMUM PRESSURE RATING:  100 PSI
