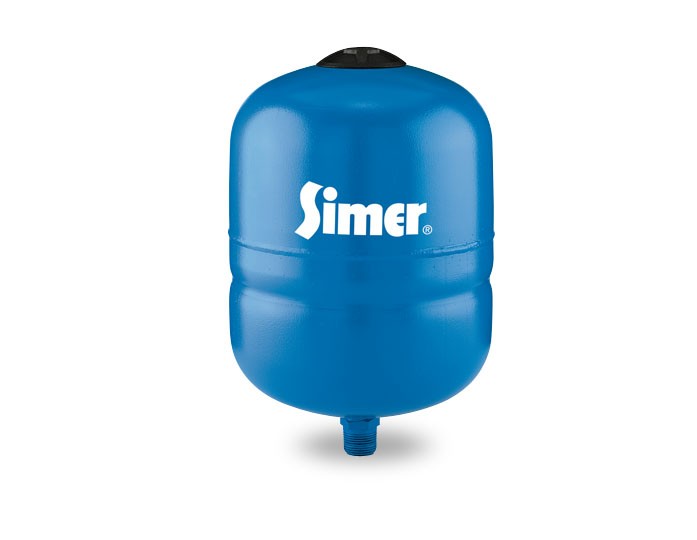

Pentair Simer LT5 5 Gallon Vertical Pre-Charged Diaphragm Style Tank

Pre-charged diaphragm style tank which is compact in size for smaller applications

KEY FEATURES

  • Heavy steel shell
  • Tough vinyl diaphragm
  • Pre-charged at factory so no compressor needed on-site

WARRANTY

5-year limited warranty

Find out where to purchase online or in a retail location near you.

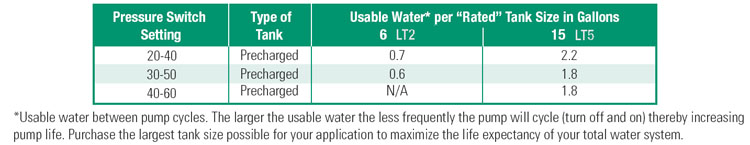

Performance Curves

PerformanceCurves_5 Gallon Vertical Pre-Charged Diaphragm Style Tank

Specifications

MAXIMUM PRESSURE RATING:  100 PSI
BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked On Polyester
DRAWDOWN (Usable Water) with 20-40 SWITCH:  2.2 Gal
DRAWDOWN (Usable Water) with 30-50 SWITCH:  1.8 Gal
DRAWDOWN (Usable Water) with 40-60 SWITCH:  1.8 Gal
MAX CAPACITY:  5 gal.
RATED (EQUIVALENCY) CAPACITY:  15 Gal
MAXIMUM OPERATING PRESSURE:  100 PSI
CONNECTION SIZE:  3/4" NPT
WEIGHT:  11.25 lbs
HEIGHT:  16.2"
DIAMETER:  10"
