Pentair Simer VT14 14 Gallon Vertical Pre-Charged Bladder Tank

Main Content Starts Here

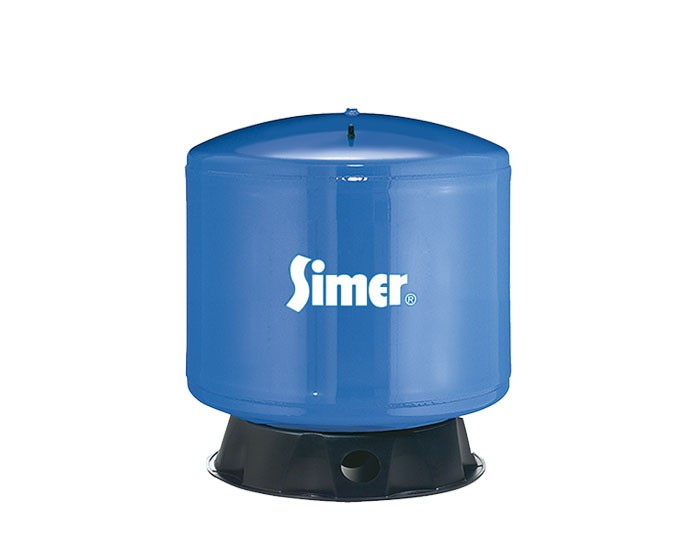

Pentair Simer VT14 14 Gallon Vertical Pre-Charged Bladder Tank

This 14 gallon pre-charged tank puts the convenience of a bladder style pre-charged tank into a shorter package for places where install height is a concern.

KEY FEATURES

  • Tough, appliance-like finish for extended life
  • Heavy gauge construction for maximum durability
  • Replaceable air/water separator for easy maintenance
  • Convenient air valve location for quick hook-up

WARRANTY

Limited 5-year warranty

Find out where to purchase online or in a retail location near you.

Specifications

BODY CONSTRUCTION:  TANK: Steel / BLADDER: Vinyl
BODY FINISH:  Electrostatically Applied Baked-On Polyester
TANK PRECHARGE:  40 PSI
TANK CAPACITY:  14 Gal
EQUIVALENCY RATING:  30 Gal
DRAWDOWN W/ 20/40 SWITCH:  4.8 (18.2)
DRAWDOWN W/ 30/50 SWITCH:  4.1 (15.5)
DRAWDOWN W/ 40/60 SWITCH:  3.6 (13.6)
BLADDER/WATER CELL:  Vinyl
PIPE TAP SIZE:  1"
MAXIMUM PRESSURE RATING:  100 PSI
TANK DIAMETER:  16" (406)
TANK HEIGHT:  23" (584)
