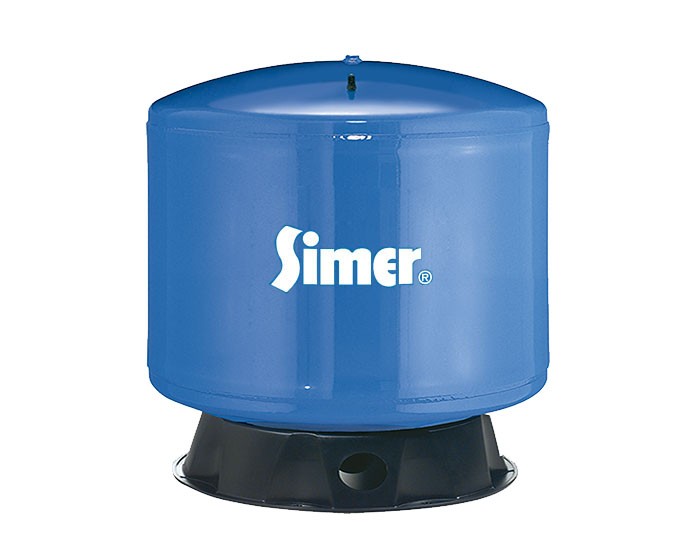

Pentair Simer VT19 19 Gallon Vertical Pre-Charged Bladder Tank

This 19-gallon pre-charged tank puts the convenience of a bladder style pre-charged tank into a shorter package for places where installed height is a concern.

KEY FEATURES

  • Tough, appliance-like finish for extended life
  • Heavy gauge construction for maximum durability
  • Replaceable air/water separator for easy maintenance
  • Convenient air valve location for quick hook-up
  • Universal jet pump mounting bracket included

WARRANTY

Limited 5-year warranty

Find out where to purchase online or in a retail location near you.

Performance Curves



Specifications

BODY CONSTRUCTION:  TANK: Steel / BLADDER: Vinyl
BODY FINISH:  Electrostatically Applied Baked-On Polyester
TANK PRECHARGE:  40 PSI
TANK CAPACITY:  19 Gal
EQUIVALENCY RATING:  42 Gal

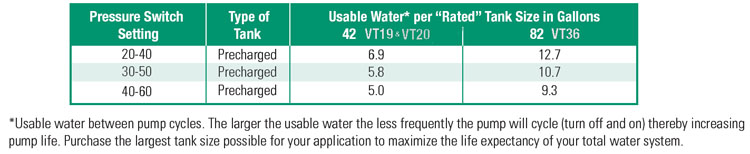

DRAWDOWN W/ 20/40 SWITCH:  6.9 (26.1)
DRAWDOWN W/ 30/50 SWITCH:  5.8 (22.0)
DRAWDOWN W/ 40/60 SWITCH:  5.0 (18.9)
BLADDER / WATER CELL:  Vinyl
PIPE TAP SIZE:  1"
MAXIMUM PRESSURE RATING:  100 PSI
