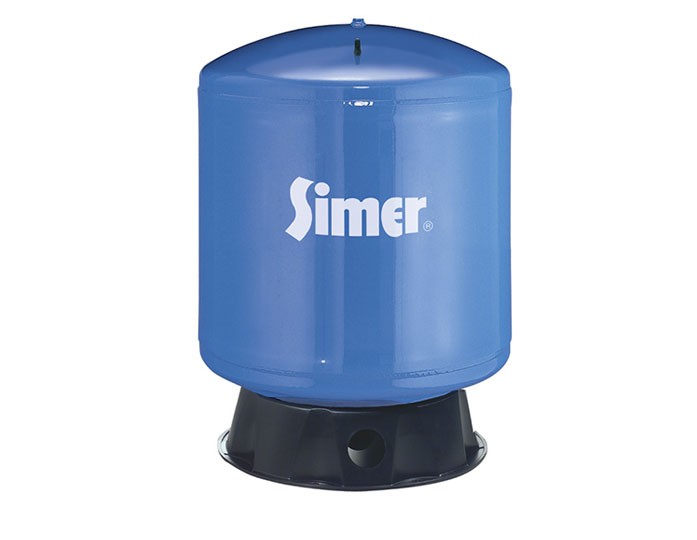

Pentair Simer VT36 35 Gallon Vertical Pre-Charged Bladder Tank

Main Content Starts Here

Pentair Simer VT36 35 Gallon Vertical Pre-Charged Bladder Tank

Medium capacity precharged bladder style tank is perfect for homes.

KEY FEATURES

  • High capacity means fewer pump cycles (can prolong your pump's life)
  • Vertical style takes up less floor space

WARRANTY

5-year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_35 Gallon Vertical Pre-Charged Bladder Tank

Accessories

Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked On Polyester
DRAWDOWN (Usable Water) with 20-40 SWITCH:  6.9 Gal
DRAWDOWN (Usable Water) with 30-50 SWITCH:  5.8 Gal
DRAWDOWN (Usable Water) with 40-60 SWITCH:  5.0 Gal
MAX CAPACITY:  35 gal
RATED (EQUIVALENCY) CAPACITY:  82 gal
MAX OPERATING PRESSURE:  100 PSI
CONNECTION SIZE:  1" NPT
WEIGHT:  50 lbs
HEIGHT:  32"
DIAMETER:  20"
MAXIMUM PRESSURE RATING:  100 PSI
