- Pentair Simer VT52 50 Gallon Vertical Pre-Charged Bladder Tank
Performance Curves
Specifications
BODY CONSTRUCTION: Heavy gauge steel
BODY FINISH: Electrostatically applied baked on polyester

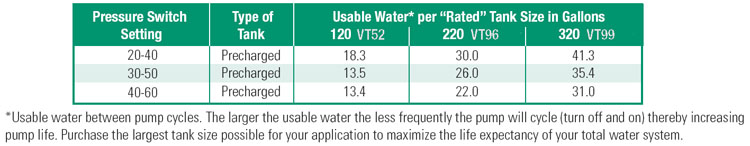

DRAWDOWN (Usable Water) with 20-40 SWITCH: 18.3 Gal
DRAWDOWN (Usable Water) with 30-50 SWITCH: 13.5 Gal
DRAWDOWN (Usable Water) with 40-60 SWITCH: 13.4 Gal MAX CAPACITY: 50 gal.
RATED (EQUIVALENCY) CAPACITY: 120 gal.
MAX OPERATING PRESSURE: 100 PSI
CONNECTION SIZE: 1-1/4" NPT
WEIGHT: 83 lbs
HEIGHT: 32"
DIAMETER: 24"
MAXIMUM PRESSURE RATING: 100 PSI
