Pentair Pentek Solar-Powered Products

Pentair is paving the way with an affordable solar solution that is easily integrated into your new or existing water supply system. With the Pentair Pentek Solar Drives, using the sun’s energy to power your day-to-day operations has never been simpler. The retrofit plug and play components provide you with cost-effective options by allowing you to only purchase components you need to optimize your existing system.

In addition to the completely off-grid line, Pentair Pentek Solar Drive Power Blender PSD25PB boasts capabilities to seamlessly blend operational energy between solar arrays and power grids. Run any qualified Pentair Pentek 4” submersible pump when sunlight is available and benefit from dependable grid power during nighttime or low solar conditions to support your 24/7 operations.

  • Retrofit existing systems with one-of-a-kind 4” AC pump and motor combination.
  • Cost savings with Pentair’s traditional 4” AC pumps versus third-party DC pumps.
  • Simple hookup, weatherproof, durable and automatic starting capacity.
Find out where to purchase online or in a retail location near you.
Where to Buy

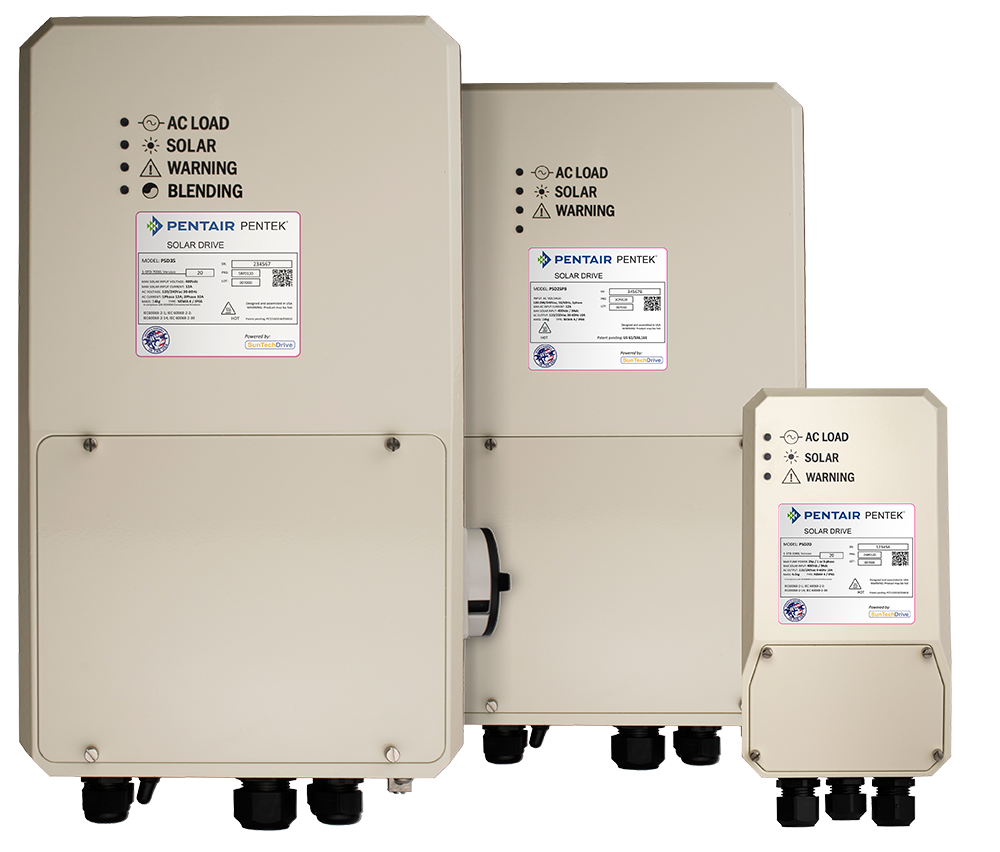

Differences between the Solar Drives

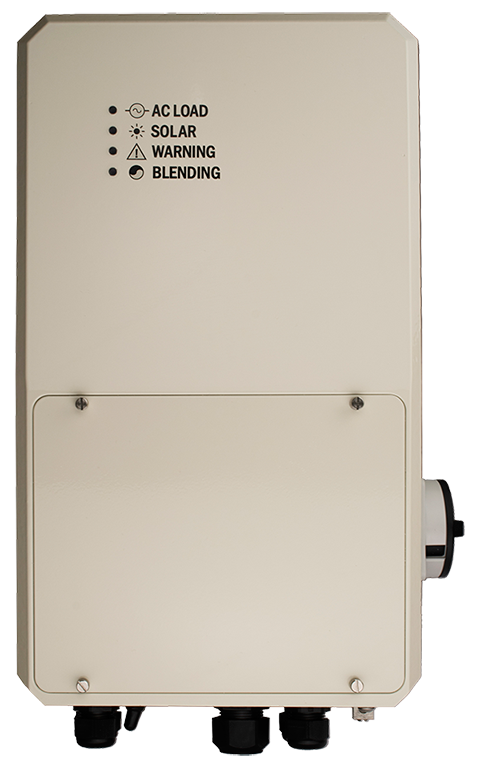

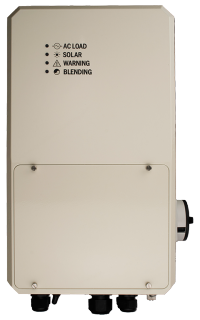

Pentair Pentek Solar Drive Power Blender PSD25PB
  • Up to 1.5HP 1-Phase
  • Up to 2HP 3-Phase
  • Blends solar and grid energy

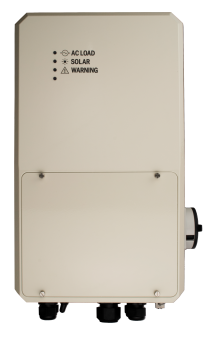

Pentair Pentek Solar Drive PSD30
  • Up to 2HP 1-Phase
  • Up to 3HP 3-Phase

Pentair Pentek Solar Drive PSD15
  • Up to 1.5HP 3-Phase
  • Requires DC Disconnect

Specifications

Operating temperature: -40°C to 50°C
Item #Single-phase max AC motor powerThree-phase max AC motor powerEnclosure materialDIMENSIONSSensor terminalDegree of protection
PSD15-7AAluminum10"x5.5"x4"AWG#14-18NEMA4/IP66
PSD3012A10AAluminum18"x10"x5"AWG#14-18NEMA3/IP65
PSD25PB10A8ACast Aluminum18"x10"x5"AWG#14-22NEMA3R/IP65
Item #Single-phase max AC motor powerThree-phase max AC motor powerEnclosure materialDIMENSIONSSensor terminalDegree of protection
PSD15-7AAluminum10"x5.5"x4"AWG#14-18NEMA4/IP66
PSD3012A10AAluminum18"x10"x5"AWG#14-18NEMA3/IP65
PSD25PB10A8ACast Aluminum18"x10"x5"AWG#14-22NEMA3R/IP65
