Pentair Pentek® ODS Series Elevator Pump Control Systems

The Pentek® ODS Series Elevator Pump Control Systems are approved for oil/water detection in applications where oil and hydrocarbons are prohibited from being released into the environment.

KEY FEATURES

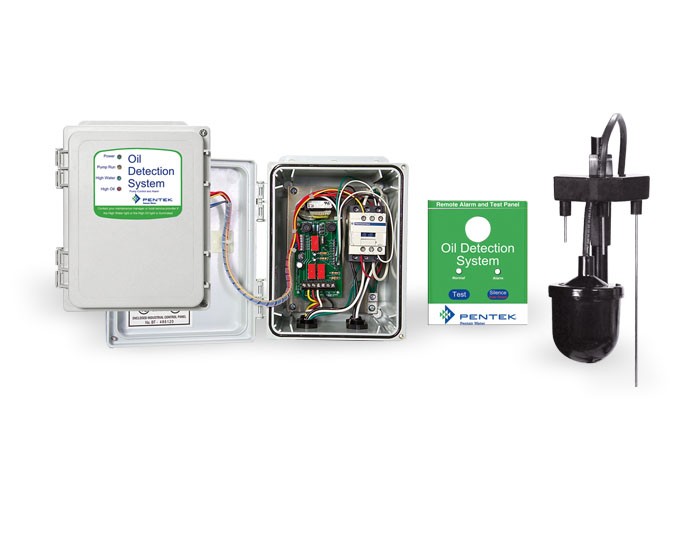

  • Control Panel -- With Separate Pump and Control Circuits
    NEMA 1 Enclosure:  8.75"H x 6.5"W x 5"D
  • Easy Installation -- Plug-in For Quick and Easy Installation.  One Pre-Set Sensor, No Field Adjustment Necessary
  • Remote Alarm
  • Multiple Indicator Lights -- Power On, Pump On, High Water, and High Oil Indicators
  • Elevator Pump Control
    • Complete Packaged System
    • 1/2 HP  115v  Sump/Effluent Pump
    • Remote Alarm
    • Easy Clamp-Mount Installation with Plug-In Ready Wiring
    • Compliant with ASME 17.1 and Local Building and Safety Codes

WARRANTY

12 months from date of purchase or 18 months from date of manufacture, whichever comes first.

Find out where to purchase online or in a retail location near you.
Where to Buy

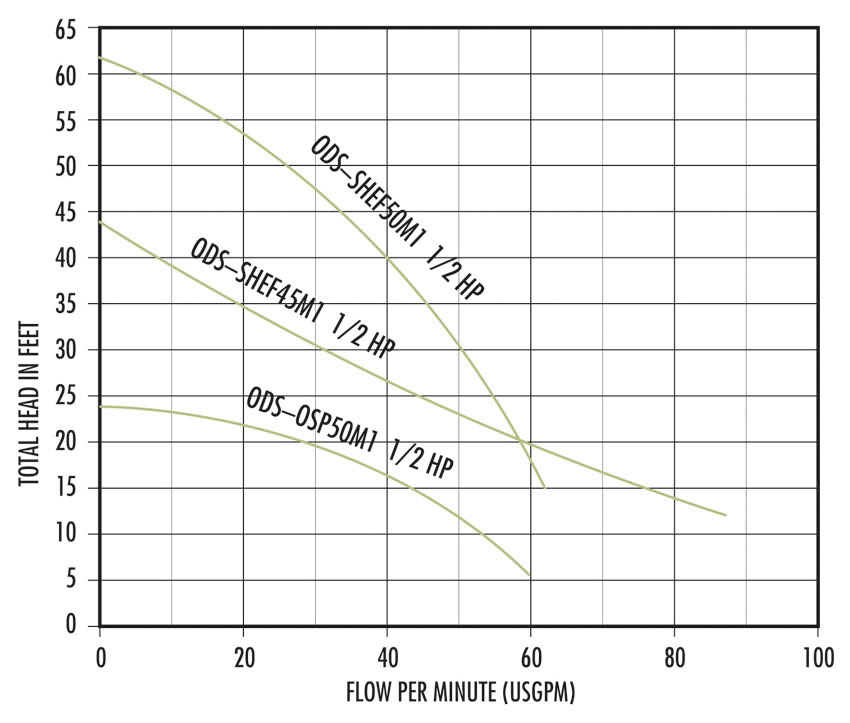

Performance Curves

PerformanceCurves_ODS Series Elevator Pump Control Systems

Specifications

Item #Horsepower
SHEF45M11/2
SHEF50M11/2
OSP50M11/2
Item #Horsepower
SHEF45M11/2
SHEF50M11/2
OSP50M11/2
Show less

BODY CONSTRUCTION:  Class 30 Cast Iron
HORSEPOWER:  1/2 HP
MAXIMUM HEAD:  62'
MAXIMUM CAPACITY:  60 GPM (3.8 LPS) up to 87 GPM (5.5LPS)
FLOW at 10' LIFT:  53 GPM (for model ODS-OSP50M1)
SWITCH TYPE:  Diaphragm Pressure Switch and Wide Angle Float Switch (manual available)
MINIMUM SUMP DIAMETER:  18" for simplex / 30" for duplex
DISCHARGE PIPE SIZE:  1-1/2" NPT (2" optional)
MAXIMUM SOLIDS HANDLING SIZE:  5/8"
AMPD DRAW (full load):  9.5 amps on 115v / 5.2 amps on 230v
CORD LENGTH:  10' SJTW (20' 30' and 50' optional)
VOLTAGE:  Available in 115v or 230v ac, 60 Hz
MAXIMUM WATER TEMPERATURE:  140°F (60°C)
MOTOR:  1/2 HP split phase with thermal overload 1750 RPM
IMPELLER:  Open Vane Naval Bronze OR Thermoplastic Vortex
