Pentair Simer 220515H 1/2 HP Shallow Well Jet Pump / Tank Combination
Main Content Starts Here

Discontinued

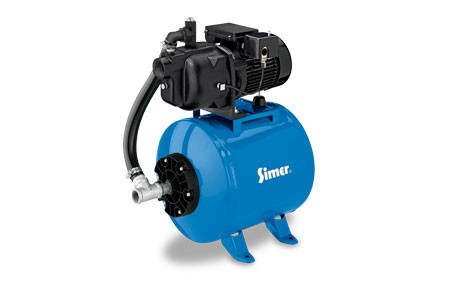

Pentair Simer 220515H 1/2 HP Shallow Well Jet Pump / Tank Combination
The 220515H shallow well jet pump and tank system is ideal for compact installations.
KEY FEATURES
- Reliable performance at depths to water of 25’ or less
- Pre-charged pressure tank with 15 gallon equivalent capacity
- Rugged cast iron construction maximizes pump life
- Ready-to-install, heavy-duty dual-voltage motor preset at 115 volts
- 1-1/4" NPT suction and 1" NPT discharge pipe size
WARRANTY
1-year limited warranty
Specifications
Item # | Horsepower | Voltage |
---|---|---|
220515H | 1/2 | 115/230 |
Item # | Horsepower | Voltage |
---|---|---|
220515H | 1/2 | 115/230 |
BODY CONSTRUCTION: Pump: Cast Iron / Tank: Steel
MAXIMUM CAPACITY: 8.5 GPM
FLOW at 10' LIFT and 40 PSI: 6.5 GPM
MAX LIFT: 25'
MAX SHUT-OFF PRESSURE: 65 PSI
PRESSURE SWITCH SETTING: 30/50
SUCTION SIZE: 1-1/4" NPT
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load): 8.5 amps on 115v / 4.2 amps on 230v
VOLTAGE: 115v / 230v AC, 60 Hz (factory preset to 115v)
RECOMMENDED BREAKER: 15 amp
MAXIMUM WATER TEMPERATURE:
TANK "EQUIVALENCY" RATING: 15 Gal
TANK ACTUAL CAPACITY: 6 Gal
TANK DRAWDOWN: 1.8 Gal
