Pentair Simer 2806E-02 1/2 HP Cast Iron Shallow Well Jet Pump / Tank System

Main Content Starts Here

Pentair Simer 2806E-02 1/2 HP Cast Iron Shallow Well Jet Pump / Tank System

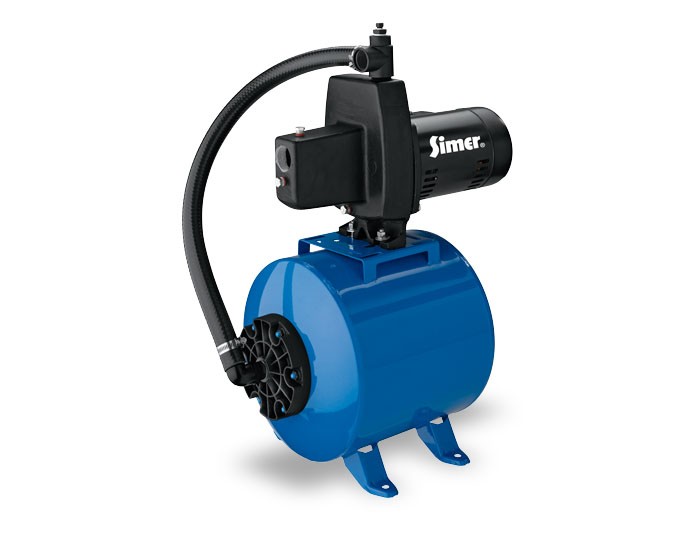

Our model 2805E jet pump mounted on a very small 6.5 gallon tank makes an ultra-compact setup for cabins, camps, trailers, etc.

KEY FEATURES

  • Very compact design
  • Rugged construction
  • Simple setup

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_/2 HP Cast Iron Shallow Well Jet Pump / Tank System

Accessories

Resources

Specifications
Resources

BODY CONSTRUCTION:  Pump is Cast Iron / Tank is Steel
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  6.9 GPM
FLOW at 10' LIFT and 40 PSI:  6 GPM
MAX LIFT:  25'
MAXIMUM SHUT-OFF PRESSURE:  69 PSI
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1-1/4" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  9.4Amps (full load)
VOLTAGE:  115V AC, 60 Hz
RECOMMENDED BREAKER:  15 Amp

OWNER'S MANUAL: 2806E-02
Download Manual

PARTS LISTING: 2805E, 2806E, 2810E, 2815E
Download Parts

SPECIFICATIONS: 2806E
Download Specs
