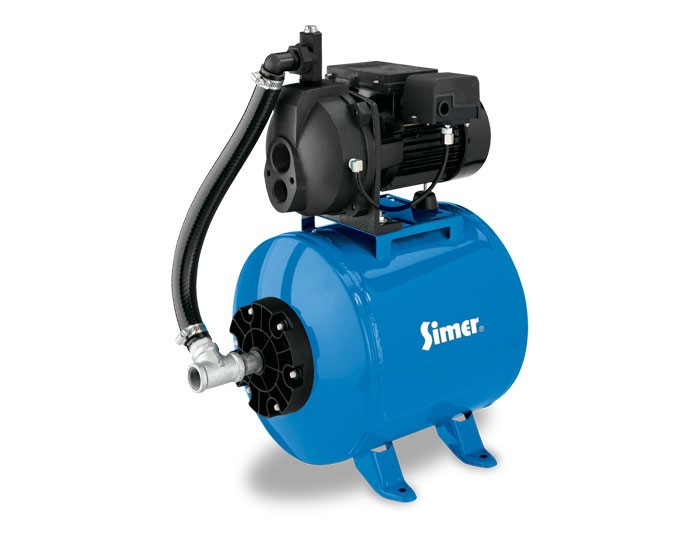

Pentair Simer 320515H 1/2 HP Convertible Deep Well Jet Pump / Tank Combination

KEY FEATURES

  • Ideal for compact installations
  • Reliable performance a depths to water of 70’ or less
  • Pre-charged pressure tank with 15 gallon capacity
  • Rugged cast iron construction maximizes pump lifeR
  • eady-to-install, heavy-duty dual-voltage motor preset at 115 volts
  • 1-1/4" NPT suction and 1" NPT discharge pipe size
  • Ejector Kit included

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

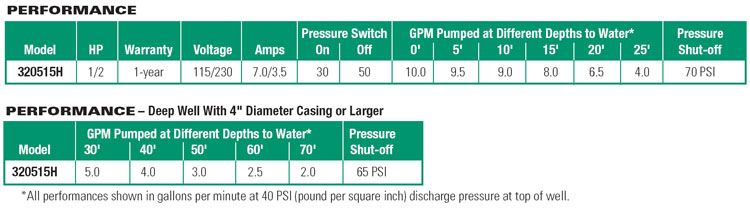

Performance Curves



Accessories

Specifications

BODY CONSTRUCTION:  Pump: Cast Iron / Tank: Steel
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  10 GPM (Shallow Well Setup)
FLOW at 10' LIFT and 40 PSI:  9 GPM (Shallow well Setup)
MAX LIFT:  70'
MAX SHUT-OFF PRESSURE:  70 PSI (Shallow Well Setup)
PRESSURE SWITCH SETTING:  30/50
SUCTION SIZE:  1-1/4" NPT
DRIVE SIZE:  1" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  7 amps on 115v /3.5 amps on 230v
VOLTAGE:  115v / 230v AC, 60 Hz (factory preset to 115v)
RECOMMENDED BREAKER:  15 amp
RATAD "EQUIVALENCY" CAPACITY:  15 Gal
ACTUAL CAPACITY:  6 Gal
DRAWDOWN:  1.8 Gal
