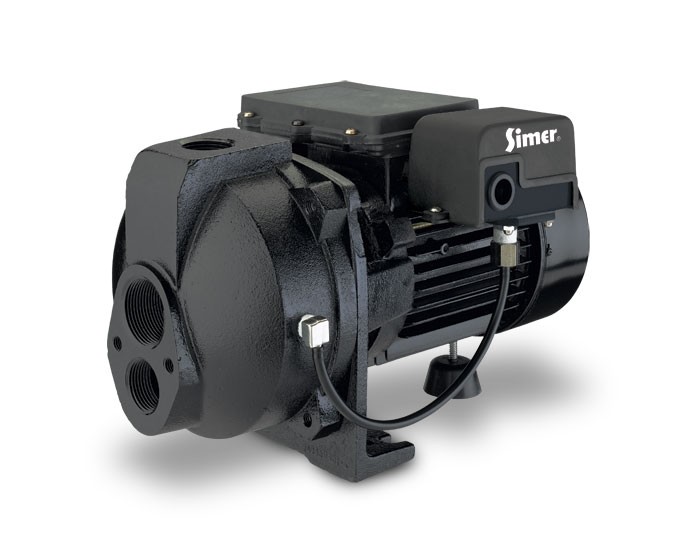

Pentair Simer 3205C 1/2 HP Cast Iron Convertible Deep Well Jet Pump

Main Content Starts Here

Pentair Simer 3205C 1/2 HP Cast Iron Convertible Deep Well Jet Pump

KEY FEATURES

  • Superior performance at depths to water of 70' or less
  • Rugged cast iron constructionReady-to-install, heavy-duty, dual-voltage 1/2HP motor preset at 115 volts
  • Self-priming after pump housing is initially filled, check valve or foot valve required
  • Pre-wired pressure switch preset for 30-50 PSI operationEjector Kit included

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

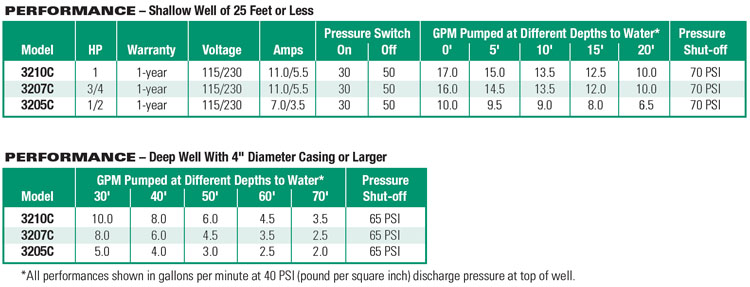

Performance Curves

Performance Curve_1/2 HP Cast Iron Convertible Deep Well Jet Pump

Accessories

Resources

Specifications
Resources

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  10 GPM (in shallow well setup)
FLOW at 10' LIFT and 40 PSI:  9 GPM (in shallow well setup)
MAX LIFT:  70'
MAXIMUM INLET PRESSURE:  70 PSI (in shallow well setup)
PRESSURE SWITCH SETTING:  30/50
SUCTION SIZE:  1-1/4" NPT
DRIVE SIZE:  1" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  7 amps on 115v / 3.5 amps on 230v
VOLTAGE:  115v / 230v AC, 60 Hz (factory preset to 115v)
RECOMMENDED BREAKER:  15 amp

OWNER'S MANUAL: 2205C, 2207C, 2210C, 3205C, 3207C, 3210C
Download Manual

PARTS LISTING: 2205C, 2207C, 2210C, 3205C, 3207C, 3210C
Download Parts Listing

SPECIFICATIONS: 3205C, 3207C, 3210C
Download Specs
