Pentair Simer 3207C 3/4 HP Convertible Deep Well Jet Pump

Main Content Starts Here

Pentair Simer 3207C 3/4 HP Convertible Deep Well Jet Pump

KEY FEATURES

  • Superior performance at depths to water of 70' or less
  • Rugged cast iron construction
  • Ready-to-install, heavy-duty, dual-voltage 3/4 HP motor preset at 230 volts
  • Self-priming after pump housing is initially filled, check valve or foot valve required
  • Pre-wired pressure switch preset for 30-50 PSI operation
  • Ejector Kit included

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

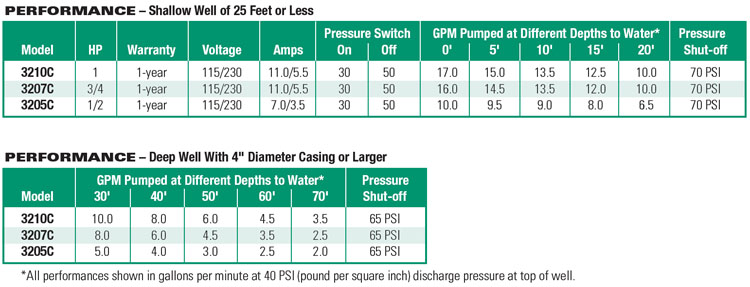

Performance Curves

PerformanceCurve_3/4 HP Convertible Deep Well Jet Pump

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  3/4 HP
MAXIMUM CAPACITY:  16 GPM (shallow well setup)
FLOW at 10' LIFT and 40 PSI:  13-1/2 GPM (shallow well setup)
MAX LIFT:  70'
MAX SHUT-OFF PRESSURE:  70 PSI (shallow well setup)
PRESSURE SWITCH SETTING:  30/50
SUCTION SIZE:  1-1/4" NPT
DRIVE SIZE:  1" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  5.5 amps on 230v / 11 amps on 115v
VOLTAGE:  230v / 115v AC, 60 Hz (factory preset to 230v)
RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v
