Pentair Simer 3210C 1 HP Convertible Deep Well Cast Iron Jet Pump

KEY FEATURES

  • Superior performance at depths to water of 70' or less
  • Rugged cast iron constructionReady-to-install, heavy-duty, dual-voltage 3/4 HP motor preset at 230 volts
  • Self-priming after pump housing is initially filled, check valve or foot valve required
  • Pre-wired pressure switch preset for 30-50 PSI operation
  • Ejector Kit included

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

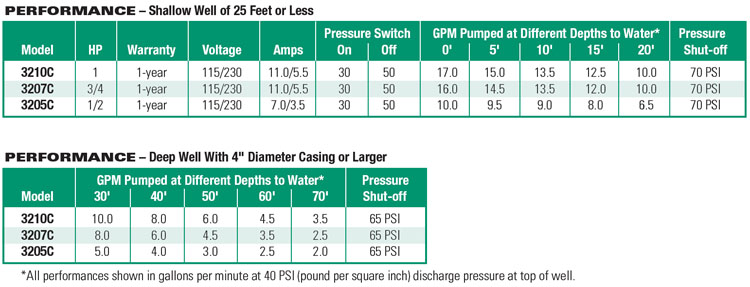

Performance Curves

PerformanceCurve_1 HP Convertible Deep Well Cast Iron Jet Pump

Accessories

Specifications
Resources

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  1 HP

MAXIMUM CAPACITY:  17 GPM

FLOW at 10' LIFT and 40 PSI:  13.5 GPM

MAX LIFT:  70'

PRESURE SWITCH SETTING:  30/50

SUCTION SIZE:  1-1/4" NPT

DRIVE SIZE:  1" NPT

DISCHARGE SIZE:  1" NPT

AMP DRAW (full load):  5.5 amps on 230v / 11.0 amps on 115v

VOLTAGE:  230v / 115v AC, 60 Hz (factory preset to 230v)

RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v

OWNER'S MANUAL: 2205C, 2207C, 2210C, 3205C, 3207C, 3210C
Download Manual

PARTS LISTING: 2205C, 2207C, 2210C, 3205C, 3207C, 3210C
Download Parts Listing

SPECIFICATIONS: 3205C, 3207C, 3210C
Download Specs
