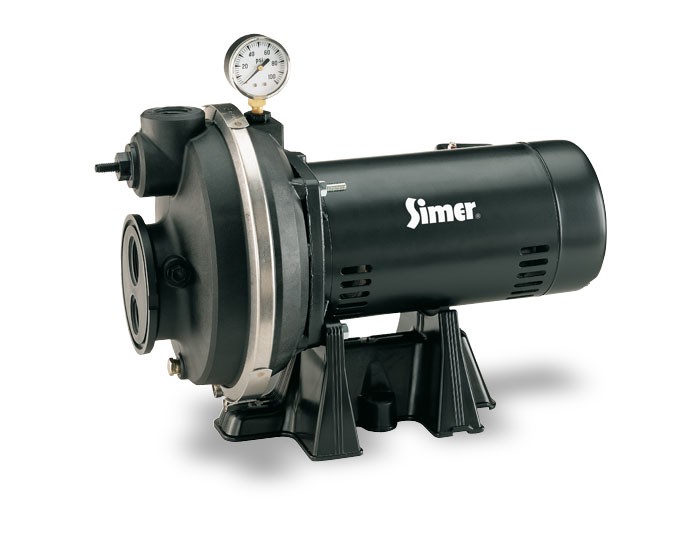

Pentair Simer 3305P 1/2 HP Thermoplastic Convertible Deep Well Jet Pump

Main Content Starts Here

Pentair Simer 3305P 1/2 HP Thermoplastic Convertible Deep Well Jet Pump

Deep-well capable jet pump pulls water from as deep as 70' for home water, etc.

Key Features

  • Tough thermoplastic design
  • Convertible to shallow or deep well setup
  • Capable of pulling from a max of 70'

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

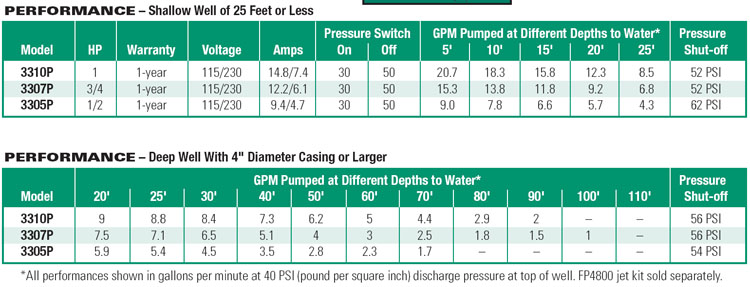

Performance Curves

PerformanceCurves_1/2 HP Thermoplastic Convertible Deep Well Jet Pump

Accessories

Specifications

BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  9 GPM (in shallow well setup)
FLOW AT 10' LIFT AND 40 PSI:  7.8 GPM
MAX LIFT:  70' (using deep well jet setup)
MAXIMUM SHUT-OFF PRESSURE:  Shallow Well Setup: 62 PSI / 4" or Larger Deep Well Setup: 54 PSI
MAXIMUM INLET PRESSURE:
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1 ¼" NPT (female)
DRIVE SIZE:  1" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  9.4 Amps on 115v / 4.7 Amps on 230v
VOLTAGE:  115v/230v, 60 Hz (factory preset to 115v)
RECOMMENDED BREAKER:  15 Amp
MAXIMUM WATER TEMPERATURE:
