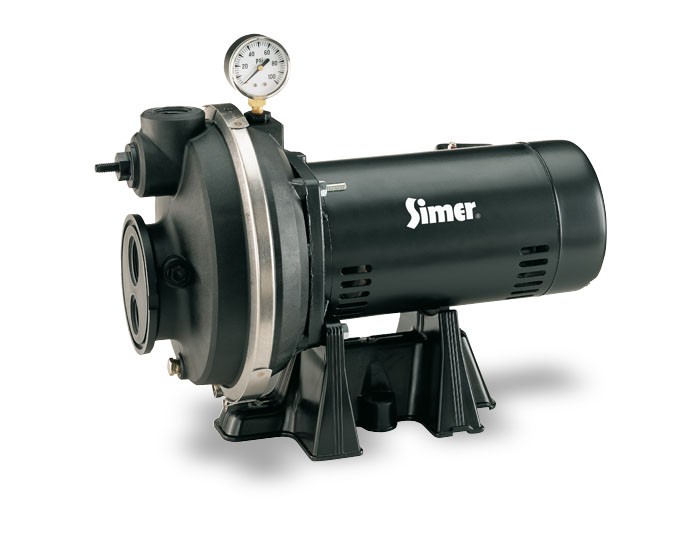

Pentair Simer 3307P 3/4 HP Thermoplastic Convertible Deep Well Jet Pump

Deep-well capable jet pump pulls water from as deep as 100' for home water, etc

Key Features

  • Tough thermoplastic construction
  • Superior Performance
  • Dual-voltage motor
  • Capable of pulling from a max of 100'

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

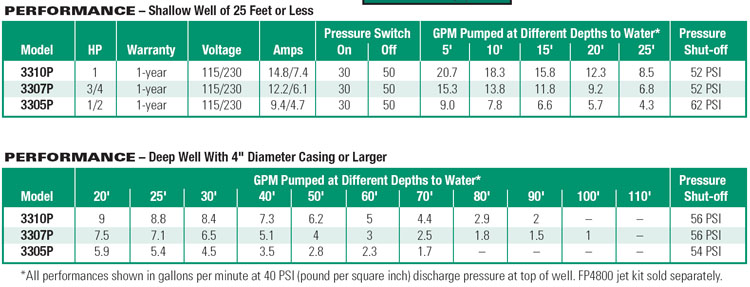

Performance Curves

PerformanceCurves_3/4 HP Thermoplastic Convertible Deep Well Jet Pump

Specifications

Item #Horsepower
3307P3/4
Item #Horsepower
3307P3/4

BODY CONSTRUCTION:  Thermoplastic
MAXIMUM CAPACITY:  15.3 GPM
FLOW AT 10' LIFT AND 40 PSI:  13.8 GPM
MAX LIFT:  100' (using deep well setup)
MAXIMUM SHUT-OFF PRESSURE:  Shallow Well Setup: 52 PSI / 4" or Larger Deep Well Setup: 56 PSI
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1 ¼" NPT (female)
DRIVE SIZE:  1" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  6.1 Amps on 230v / 12.2 Amps on 115v
VOLTAGE:  230v / 115v, 60 Hz (factory pre-set to 230v)
RECOMMENDED BREAKER:  15 Amp for 230v / 20 Amp for 115v
