Pentair Simer 3310P 1 HP Thermoplastic Convertible Deep Well Jet Pump

Deep-well capable jet pump pulls water from as deep as 100' for home water, etc

Key Features

  • Strong thermoplastic construction
  • Dual voltage motor
  • Capable of pulling water from a max of 90'

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

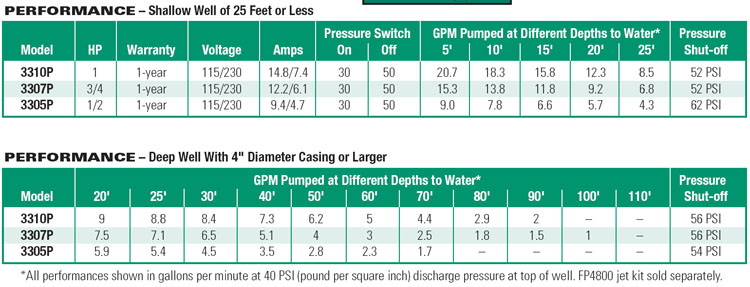

Performance Curves

PerformanceCurves_1 HP Thermoplastic Convertible Deep Well Jet Pump

Accessories

Specifications
Resources

BODY CONSTRUCTION:  Thermoplastic

HORSEPOWER:  1 HP

MAXIMUM CAPACITY:  20.7 GPM

FLOW AT 10' LIFT AND 40 PSI:  18.3 GPM

MAX LIFT:  90' (using deep well setup)

MAXIMUM SHUT-OFF PRESSURE:  Shallow Well Setup: 52 PSI / 4" or Larger Deep Well Setup: 56 PSI

MAXIMUM INLET PRESSURE:

PRESSURE SWITCH SETTING:  30 - 50 PSI

SUCTION SIZE:  1 ¼" PSI (female)

DRIVE SIZE:  1" NPT (female)

DISCHARGE SIZE:  1" NPT (female)

AMP DRAW (full load):  7.4 amps on 230v / 14.8 amps on 115v

VOLTAGE:  230v / 115v AC, 60 Hz (Factory Preset to 230v)

RECOMMENDED BREAKER:  15 Amp on 230v / 20 Amp on 115v

MAXIMUM WATER TEMPERATURE:

OWNER'S MANUAL: 3305P, 3307P, 3310P

Download Manual

PARTS LISTING: 3305P, 3307P, 3310P

Download Parts

SPECIFICATIONS: 3305P, 3307P, 3310P

Download Specs

INSTRUCTIONS: PRESSURE SWITCH ADJUSTMENT

Download Instructions
