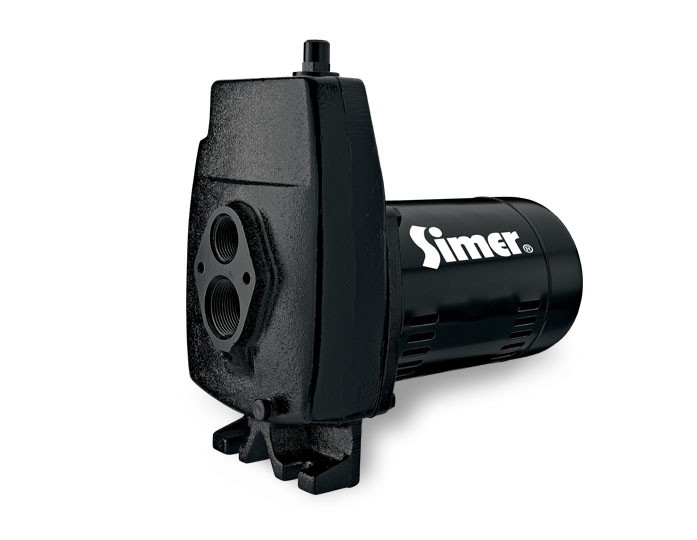

- Pentair Simer 3325E 1/2 HP Cast Iron Convertible Deep Well Jet Pump

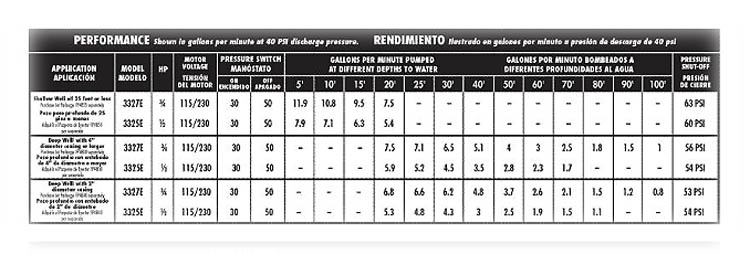

Performance Curves

Specifications
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 1/2 HP
MAXIMUM CAPACITY: 7.9 GPM (in shallow well setup)
FLOW at 10' LIFT and 40 PSI: 7.1 GPM (in shallow well setup)
MAX LIFT: 100' (with deep well ejector package)
SHUT-OFF PRESSURE: 60 PSI (shallow well) / 54 PSI (deep well)
PRESSURE SWITCH SETTING: 30 - 50
SUCTION SIZE: 1-1/4" NPT
DRIVE SIZE: 1" NPT
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load): 9.9 amps on 115v / 4.95 amps on 230v
VOLTAGE: 115v / 230v (factory preset at 115v)
RECOMMENDED BREAKER: 15 amps
