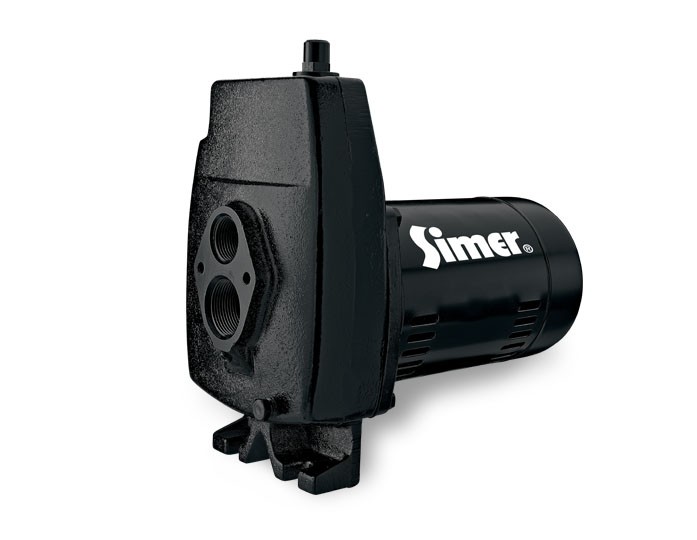

Pentair Simer 3327E 3/4 HP Cast Iron Deep Well Convertible Jet Pump

Strong cast iron convertible deep well jet pump is perfect for
above-ground installation pulling from a 2" or 4" well of up to 100'
depth-to-water

Key Features

  • Strong Cast Iron Construction
  • Convertible -- Works With Shallow or Deep Wells (purchase matching ejector)
  • Dual-Voltage -- Runs on either 230v or 115v (factory preset to 230v)

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

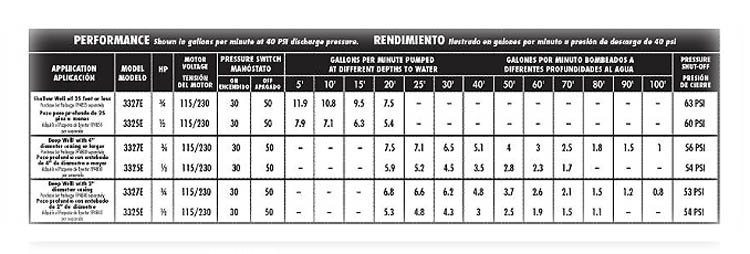

Performance Curves

PerformanceCurves_3/4 HP Cast Iron Deep Well Convertible Jet Pump

Accessories

Specifications
Resources

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  3/4 HP

MAX CAPACITY:  11.9 GPM

FLOW at 10' LIFT and 40 PSI:  10.8 GPM

MAX LIFT:  100'

SHUT-OFF PRESSURE:  63 PSI

PRESSURE SWITCH SETTING:  30-50 PSI

SUCTION SIZE:  1-1/4" NPT

DRIVE SIZE:  1" NPT

DISCHARGE SIZE:  1" NPT

AMP DRAW (full load):  6.1 amps on 230v / 12.2 amps on 115v

VOLTAGE:  230v / 115v AC, 60 Hz (factory preset at 230v)

RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v

OWNER'S MANUAL: 3325E, 3327E, 3305P, 3307P, 3310P

Download Manual

PARTS LISTING: 3305P, 3307P, 3310P, 3325E, 3327E

Download Parts
