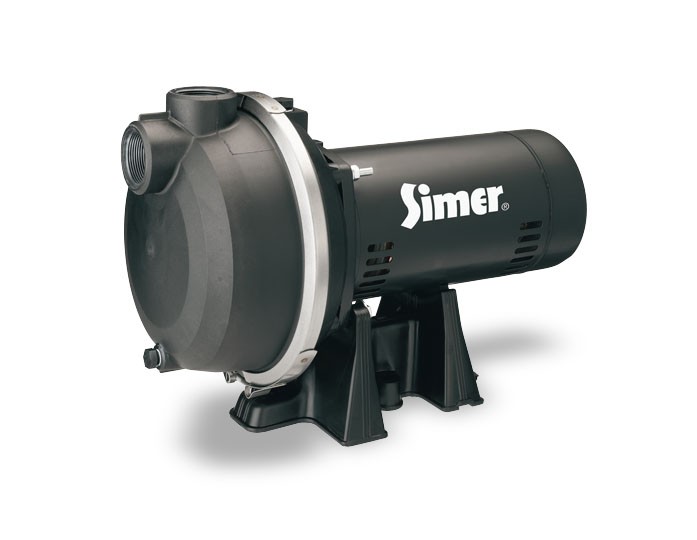

Pentair Simer 3410P 1 HP Thermoplastic Sprinkler System Pump

With a combination of good flow and good pressure, these pumps are perfect for your in-ground sprinkler system.

KEY FEATURES

  • Superior performance at depths to water of 20' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  •  Ready-to-install 230 volt motor (dual voltage)
  • Self-priming after pump housing is initially filled (Check Valve or Foot Valve required)

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

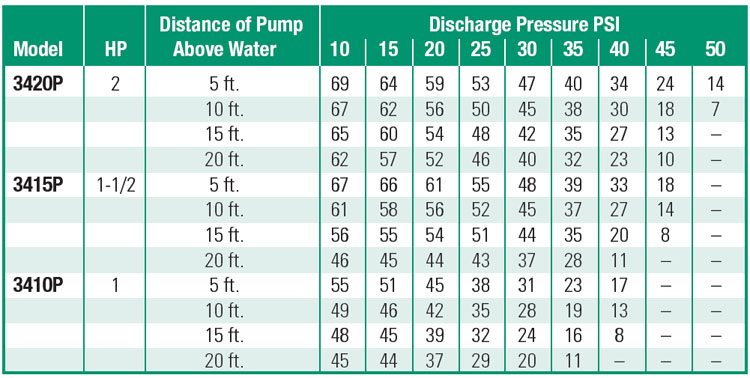

Performance Curves

PerformanceCurves_1 HP Thermoplastic Sprinkler System Pump

Specifications

BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  1 HP
MAXIMUM CAPACITY:  55 GPM
FLOW AT 10' LIFT AND 30 PSI:  28 GPM
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  46 PSI
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure):   55 PSI
SUCTION SIZE:  1 ½" NPT (female)
DISCHARGE SIZE:  1 ½" NPT (female)
AMP DRAW (full load):  7.4 amps on 230v / 14.8 amps on 115v
VOLTAGE:  230V / 115V AC, 60 Hz
MAXIMUM WATER TEMPERATURE:  140°F (60°C)
