Pentair Simer 3420P 2 HP Thermoplastic Sprinkler System Pump

With a combination of good flow and good pressure, these pumps are perfect for your in-ground sprinkler system.

Key Features

  • Superior performance at depths to water of 20' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  • Ready-to-install 230 volt motor (dual voltage)
  • Self-priming after pump housing is initially filled (Check Valve or Foot Valve required)

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

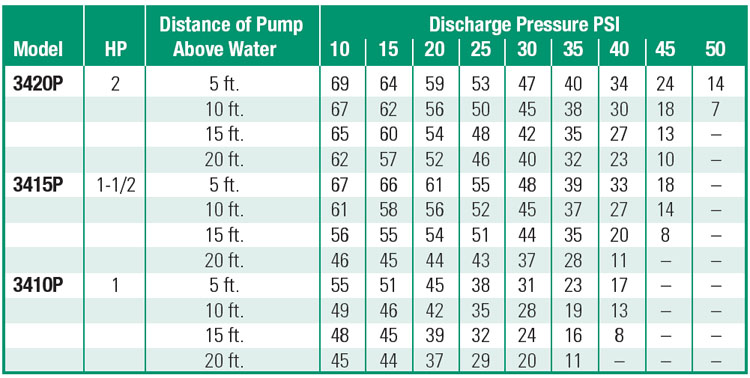

Performance Curve

PerformanceCurves_2 HP Thermoplastic Sprinkler System Pump

Accessories

Specifications

BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  2 HP
MAXIMUM CAPACITY:  69 GPM
FLOW AT 10' LIFT AND 30 PSI:  45 GPM
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  58 PSI
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure):  69 PSI
SUCTION SIZE:  2" NPT (female)
DISCHARGE SIZE:  2" NPT (female)
AMP DRAW (max load):  12 amps on 230v ; 24 amps on 115v
VOLTAGE:  230v / 115v AC 60 Hz
MAXIMUM WATER TEMPERATURE:  140°F (60°C)
